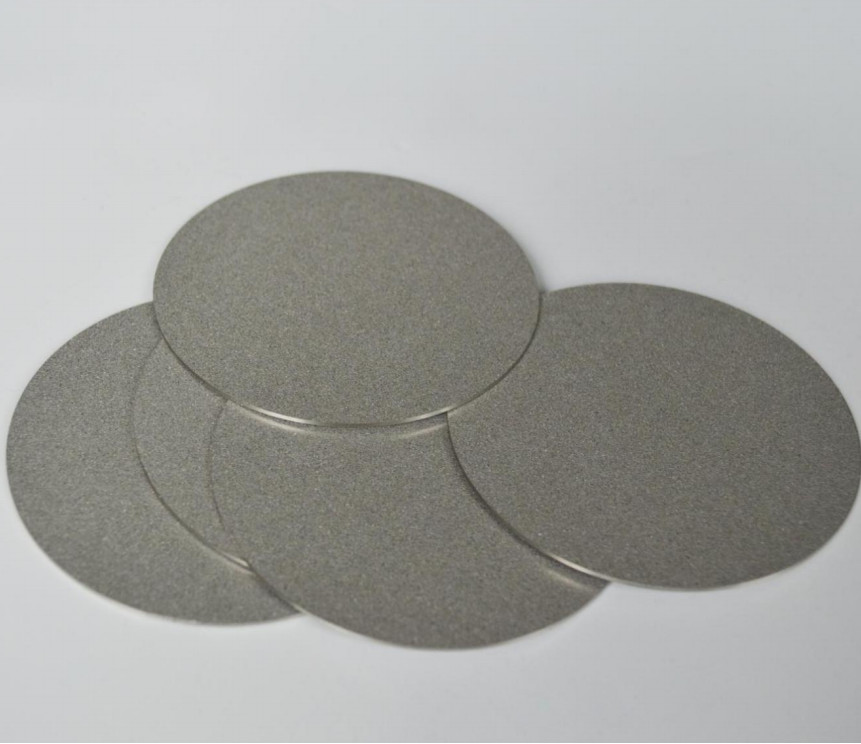

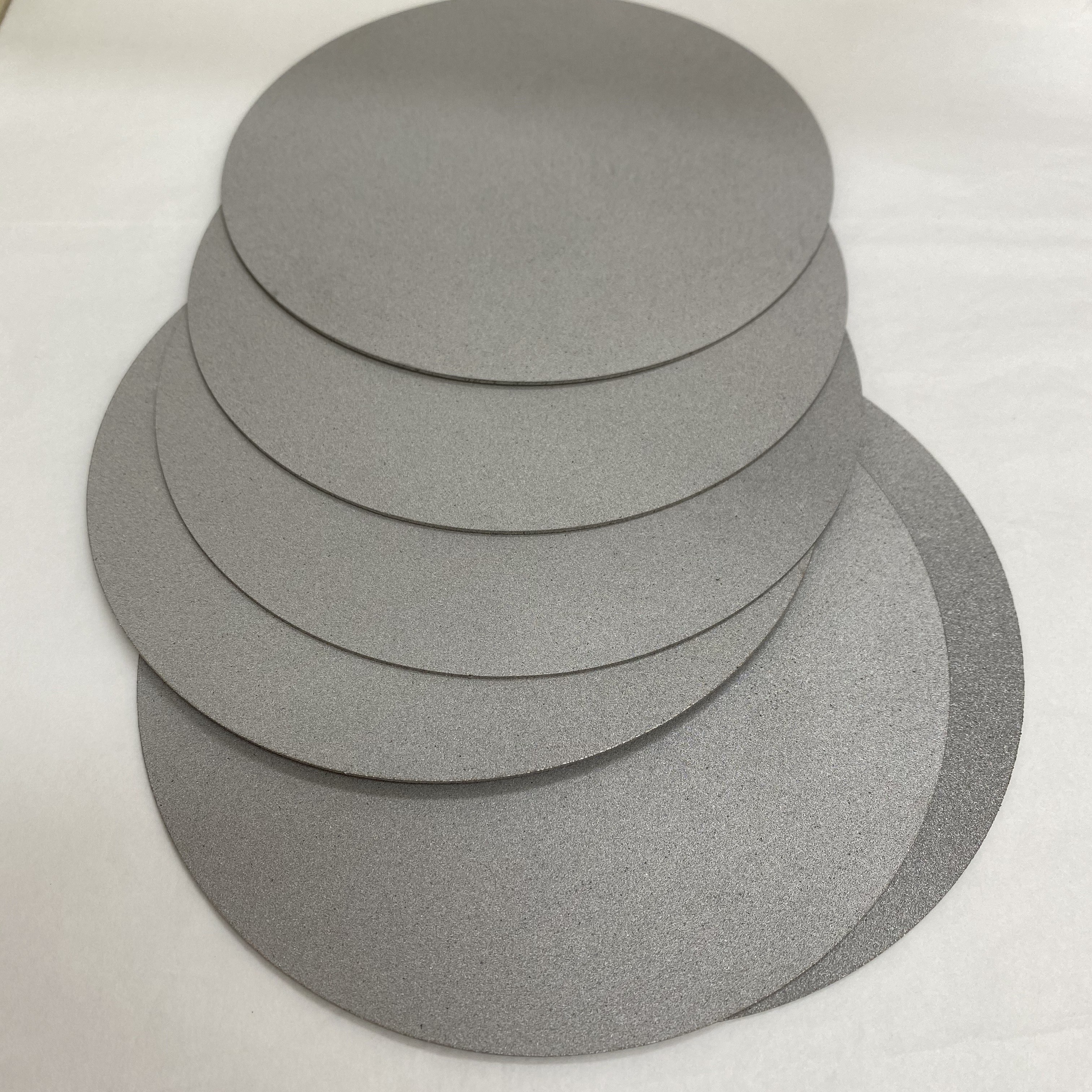

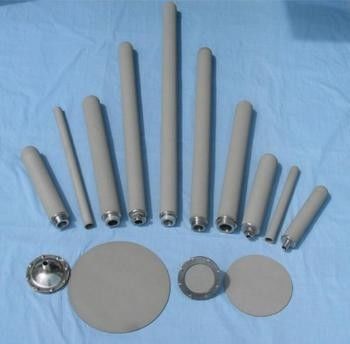

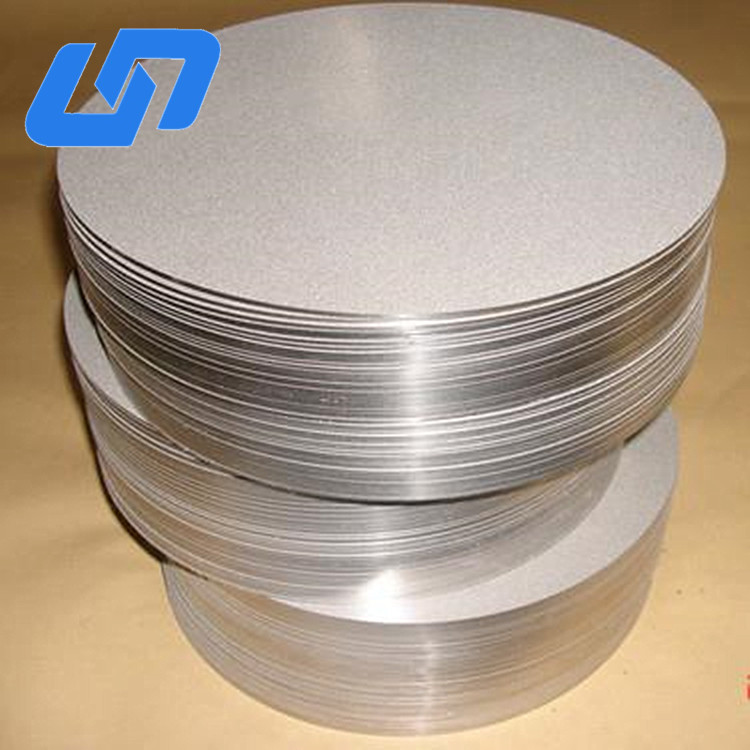

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
| Herkunftsort | CHINA |
|---|---|
| Markenname | CSTY |
| Zertifizierung | GB/T19001-2016/ISO9001:2015 |
| Modellnummer | SS 316L |
| Min Bestellmenge | 10 kg |
| Preis | $80.00 - $110.00/ Piece |
| Verpackung Informationen | Film und Holzgehäuse, Kartonverpackung können nach Kundenanforderungen erstellt werden. |
| Lieferzeit | 15 ~ 20 Arbeitstage |
| Zahlungsbedingungen | L/C, T/T, Western Union, Moneygram, Paypal |
| Versorgungsmaterial-Fähigkeit | 5000 Kilogramm/Kilo pro Monat |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Filtrationsgenauigkeit | 0,1um | Abriebfestigkeit | Hoch |
|---|---|---|---|
| Merkmal | Verwendung in stark ätzenden Umgebungen | Filtrationsbereich | 0.3-1.0m2 |
| Spezifikation | 0.5um, 2um, 5um, 10um, | Durchmesser | 50 bis 1000 mm |
| Material | Titan, SS 316L, Inconel600 usw. | Beispielservice | Stellen Sie Probe für die Prüfung zur Verfügung |
| Typ | Metall-, SS -Filterscheibe | Standard | ISO9000 |
| Arbeitsdruck | 2-3Mpa | Verpackung | Standard -Exportpaket |
| Dienstleben | 2-5 Jahre | Maximaler Druck | 2.0Mpa |
| Dimension | Angepasst | ||
| Hervorheben | Sinterte poröse Inconel600-Filterplatte,Filterplatte aus Titan gesintert,SS 316L sinterte Trennplatte |
||
Produkt-Beschreibung
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.
Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.
Specifications
| Product Name | Sintered Plate |
|---|---|
| Material | Pure Titanium / SS316L / Bronze / Inconel 600 |
| Size | OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm |
| Filter Accuracy | 0.5–80 µm |
| Connection | Customized according to customer requirements |
| Applications | Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (µm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Applications
The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.
Typical applications include:
-
Sparging
-
Separation and Filtration
-
Carbonation
-
Liquid Filtration
-
Catalyst Recovery
-
Steam Filtration
-
Slurry Oil Filtration
-
Flame Arrestors
-
Sound Silencing
-
Fluid Distribution and Control
-
Semiconductor Manufacturing
-
Fuel Cell Stacks
-
Coating Electrodes
-
Damping and Shock Absorption
-
Heat Exchange
-
Bio-Implants
Properties
-
Uniform pore size and stable pore structure with high separation efficiency
-
High porosity, low filtration resistance, and excellent permeability
-
Outstanding chemical stability and resistance to acids, alkalis, and oxidation
-
Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards
-
Strong mechanical properties, low differential pressure, and large flow capacity
-
Excellent anti-microbial characteristics, non-reactive with microorganisms
-
Easy online regeneration, backwashing, and long service life
-
Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications
-
Effective electromagnetic shielding performance
-
Strong damping and shock resistance
